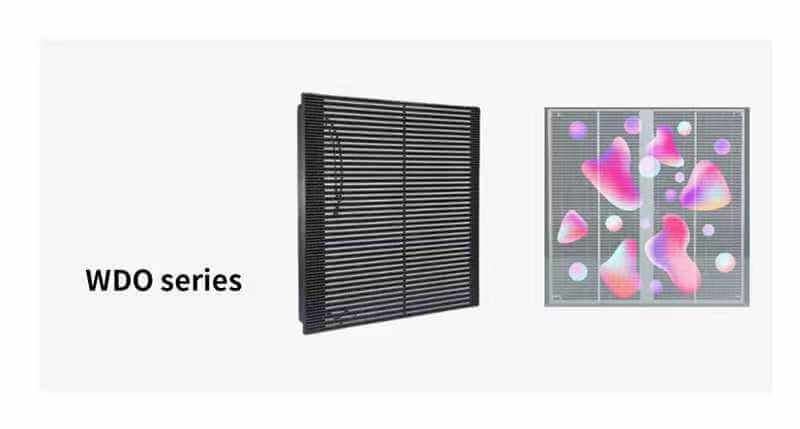

The WDO series transparent LED screens come in standard sizes of 1000×1000MM and 1000×500MM, with optional screen colors of black and white. Its PCB adopts a hollow design, and the whole screen is composed of small LED lights forming a structure similar to a “blind lamp”, featuring both thinness, lightness and transparency, with a light transmittance as high as 80%.

The front module of this series of screens is detachable for easy maintenance;

the wall series products weigh only 6.5KG/㎡, which has low requirements on the bearing capacity of the installation carrier and is suitable for various scenarios. In addition, the screen size can be customized according to customers’ actual needs, and it can also be made into creative transparent screens in shapes such as cylindrical, circular, and magic cube.

WDO Series – Introduction

As the name suggests, the core feature of the WDO series transparent LED screens is “transparency”. Addressing the pain points of traditional screens—such as overweight, poor heat dissipation, complex structure, high power consumption, and obtrusive appearance—caused by their opacity, airtightness, and other inherent properties, the WDO series innovatively introduces a “transparent LED display” solution.

This series boasts high transparency and ultra-lightweight characteristics. Its technology originates from micro-innovations in light bar screens, with improvements in (SMT technology), lamp bead packaging, and control systems. Combined with a hollow design, it minimizes the obstruction of structural components to the line of sight, maximizing the perspective effect. Meanwhile, it delivers a unique display experience: when viewed from an optimal distance, the image appears to float on the glass curtain wall.

Thanks to these advantages, the WDO series expands the application of LED displays to building glass curtain walls and commercial retail windows, becoming a new trend in new media development. Compared with conventional outdoor LED screens, it not only retains advantages like high-definition display but also effectively solves the problem of traditional screens being incompatible with the urban environment when “not in use”—even when inactive during the day, it does not affect the surrounding aesthetics, as it is installed behind glass curtain walls.

In addition, with the growing popularity of high-end building materials such as glass curtain walls, the WDO series, featuring thinness, lightness, no need for steel structures, easy installation and maintenance, and high transparency, can perfectly integrate with glass curtain walls. It is not only stylish and aesthetically pleasing but also adds a modern technological touch to urban buildings, making it a new choice for enhancing urban beauty.

A. Non-Waterproof Type
Model WDOI-PH2.6-5.2 WDOI-PH2.8-5.6 WDOI-PH3.125 WDOI-PH3.91-7.82 WDOI-PH7.82-7.82 WDOI-PH10.4
Pixel Pitch 2.6-5.2mm 2.8-5.6mm 3.125-3.125mm 3.91-7.82mm 7.82-7.82mm 10.4-10.4mm
Lamp Bead Model 1921 1921 1921 1921 1921 3535
Color 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Pixel Density 73728px/㎡ 61952px/㎡ 102400px/㎡ 32768px/㎡ 16384px/㎡ 9612px/㎡
Module Size 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm
Tranparency 65% 68% 60% 70% 75% 80%
Refresh Rate ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Weight 6kg/㎡ 6kg/㎡ 6kg/㎡ 6kg/㎡ 6kg/㎡ 6kg/㎡
Viewing Angle 160 ° 160 ° 160 ° 160° 160 ° 160 °
Voltage 5 5 5 5 5 5
Average Power 100-300w/㎡ 100-300w/㎡ 100-300w/㎡ 100-300w/㎡ 100-300w/㎡ 100-300w/㎡
Maximum Power 300-600w/㎡ 300-600w/㎡ 300-600w/㎡ 300-600w/㎡ 300-600w/㎡ 300-600w/㎡
Brightness ≤5000cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡
Operation Temperature -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃
Scanning Method 1/11S 1/11S 1/11S 1/8S 1/4S 1/4S
Life Time 100000 100000 100000 100000 100000 100000
Ip Class IP45 IP45 IP45 IP45 IP45 IP45

Tab 1

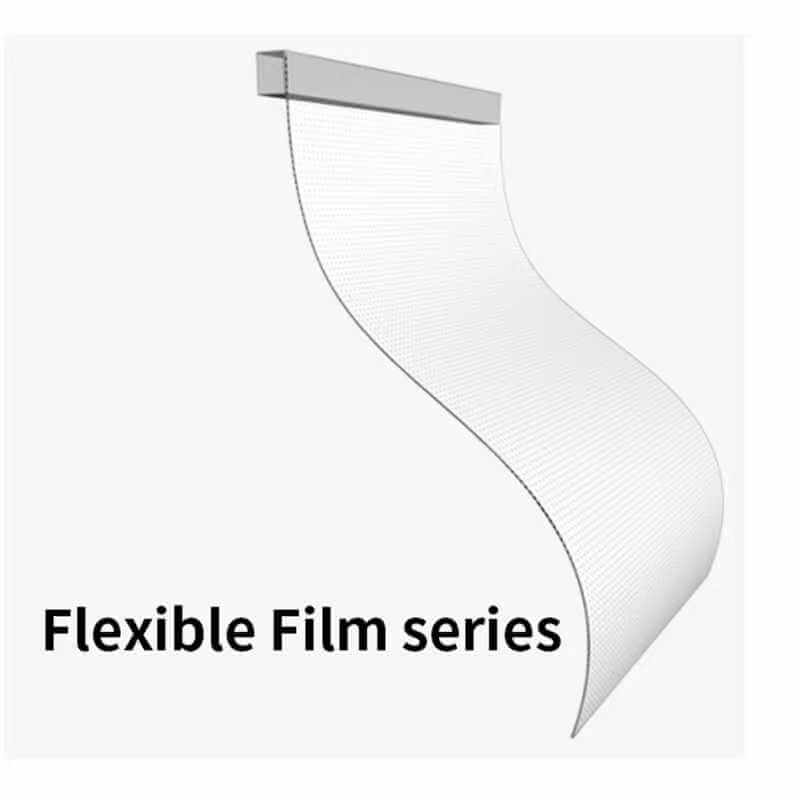

1  The advantages of this LED holographic screen product are as follows:

– It adopts an integrated lamp area design. There are no other components except lamp beads on the front and back of the module, presenting a concise and aesthetic appearance.

– It supports custom sizes of any specification, and features good flexibility, allowing for free bending and cutting. Additionally, it can be pasted on either the front or back, meeting the needs of more diverse application scenarios.

Refresh Rate ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Weight 2kg/㎡ 2kg/㎡ 2kg/㎡ 2kg/㎡ 2kg/㎡ 2kg/㎡ 2kg/㎡ 2kg/㎡ 2kg/㎡
Viewing Angle 160° 160° 160° 160° 160° 160° 160° 160° 160°
Voltage 5 5 5 5 5 5 5 5 5
Average Power ≤300w/㎡ ≤240w/㎡ ≤240w/㎡ ≤240w/㎡ ≤240w/㎡ ≤240w/㎡ ≤240w/㎡ ≤200w/㎡ ≤120w/㎡
Maximum Power ≤800w/㎡ ≤800w/㎡ ≤800w/㎡ ≤800w/㎡ ≤800w/㎡ ≤800w/㎡ ≤800w/㎡ ≤600w/㎡ ≤400w/㎡
Brightness ≤3000cd/㎡ ≤3000cd/㎡ ≤4500cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡ ≤5000cd/㎡
Operation Temperature -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃
Drive mode Static Static Static Static Static Static Static Static Static
Life Time 100000 100000 100000 100000 100000 100000 100000 100000 100000
Ip Class IP43 IP43 IP43 IP43 IP43 IP43 IP43 IP43 IP43

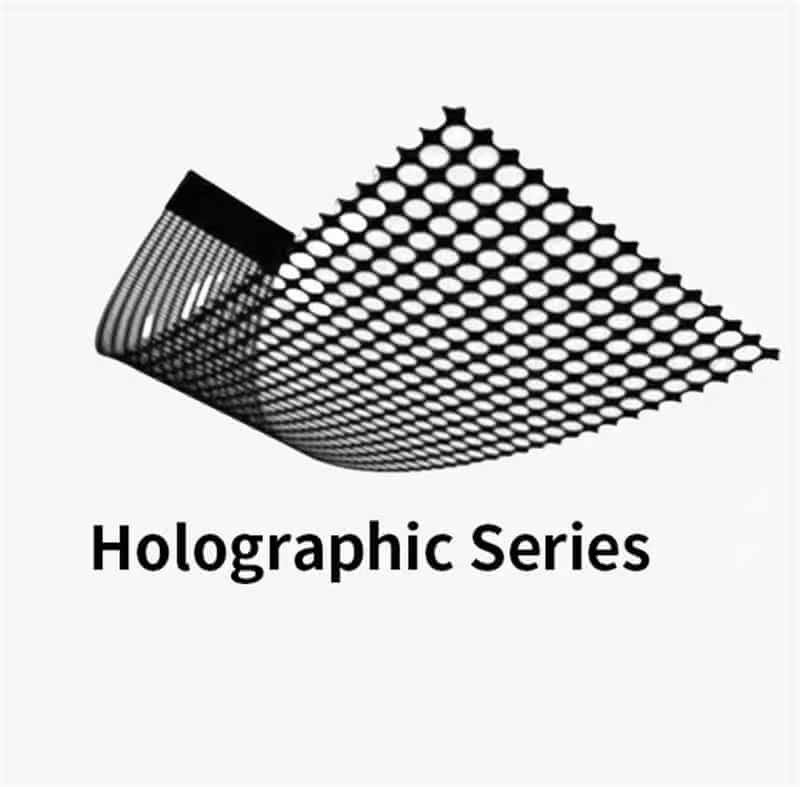

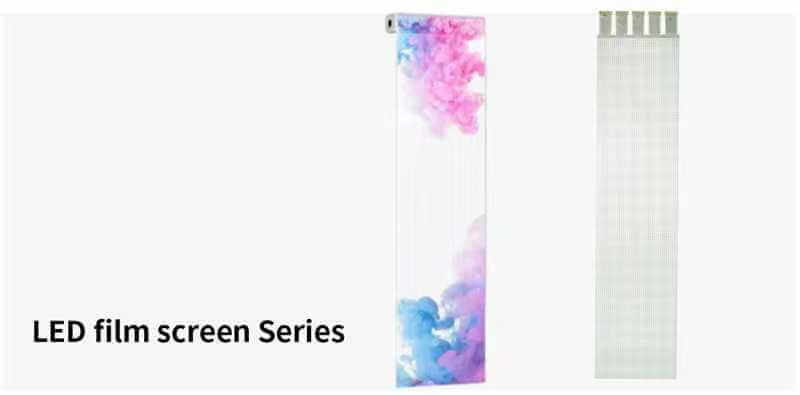

2：Introduction: LED holographic screen invisible screen screen is grid-like, using a special design of transparent LED display components, so that the light can penetrate the display, will not cause obvious obstruction of the background, with ultra-thin, high-definition, high brightness, high transmittance and other characteristics, in the playback of holographic video or 3D video, the human eye naturally screen before the screen after the screen scene with the screen in the screen for the three-dimensional fusion of the screen, the formation of a very strong sense of three-dimensional levitation. As the screen body light for the picture, lights out that is transparent.

Tab 1

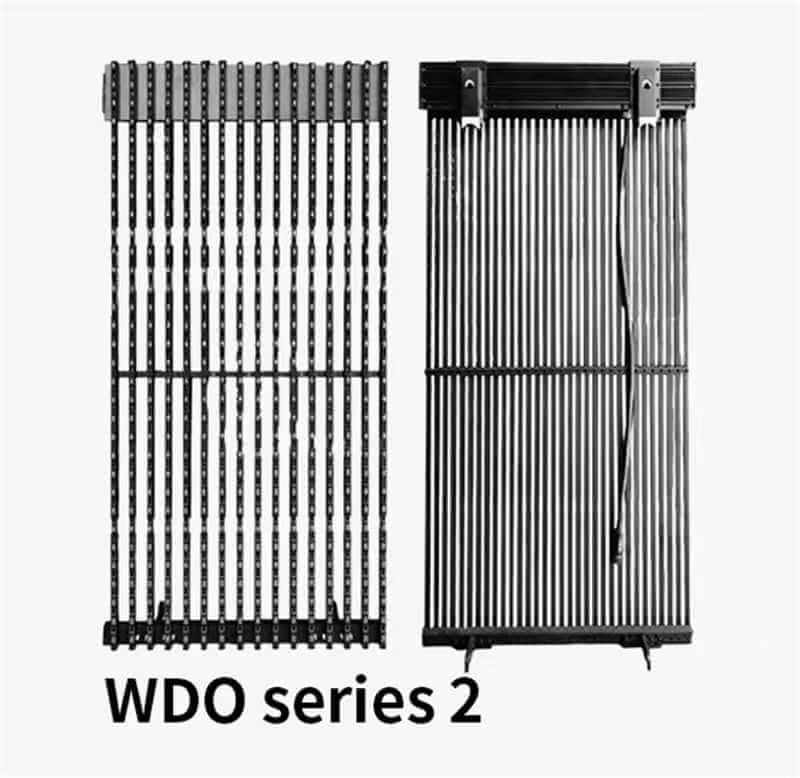

WDO2 SERIES is modular, customisable and free to be spliced. The screen does not affect the line of sight when it is switched off and displays clear video images when it is switched on. As WDO2 SERIES is highly transparent, lightweight and portable, it can form a transparent display effect on the glass curtain wall, which has a sense of technology and fashion, and is suitable for large-scale use.WDO2 SERIES lamp beads are available in two series: DIP direct insertion lamp beads and SMD SMD lamp beads. According to your needs, we use high quality and high contrast LED beads that meet your requirements to ensure that our WDO2 series devices have excellent stability, wide viewing angles and good colour consistency. It can meet the needs of high definition, high refresh rate, high grey scale, low brightness and low failure rate. Under normal outdoor use, its service life is ten years.

WDO2-PH15-31 TMD-PH20 TMD-PH25 TMD-PH31.2 WDO2-PH20-50 WDO2-PH50
15.6-31.2mm 20-20mm 25-25mm 31.2-31.2 20-50mm 50-50mm
2727/3535 2727/3535 2727/3535 2727/3535 2727/3535 2727/3535
1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
2048px/㎡ 2500px/㎡ 1600px/㎡ 1024px/㎡ 800px/㎡ 400px/㎡
1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm
70% 72% 75% 75% 80% 85%
≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡
160 ° 160 ° 160 ° 160 ° 160 ° 160 °
5V 5V 5V 5V 5V 5V
240w/㎡ 240w/㎡ 240w/㎡ 200w/㎡ 120w/㎡ 120w/㎡
800w/㎡ 800w/㎡ 800w/㎡ 800w/㎡ 800w/㎡ 800w/㎡
≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡
-22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃
Static Static Static Static Static Static
100000 100000 100000 100000 100000 100000
IP68 IP68 IP68 IP68 IP68 IP68

Tab 1

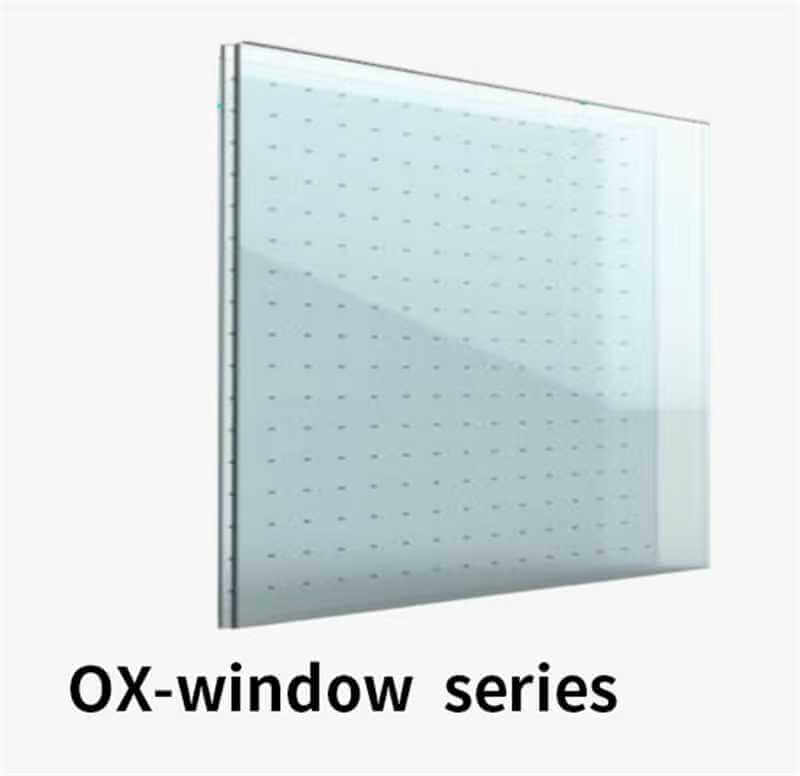

The “ox-window” series is a special laminated glass with LED screen embedded in the center of the glass, which is an energy-saving, environmentally friendly, safe and practical high-tech building material.

Model TMG-PH8-12 TMG-PH15 TMG-PH15-31 TMG-PH20 TMG-PH25 TMG-PH31.2 TMG-PH20-50 TMG-PH50
Pixel Pitch 8.3-12.5mm 15.6-15.6mm 15.6-31.2mm 20-20mm 25-25mm 31.2-31.2 20-50mm 50-50mm
Lamp Bead Model 2727/3535 2727/3535 2727/3535 2727/3535 2727/3535 2727/3535 2727/3535 2727/3535
Color 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Pixel Density 9600px/㎡ 4096px/㎡ 2048px/㎡ 2500px/㎡ 1600px/㎡ 1024px/㎡ 800px/㎡ 400px/㎡
Module Size 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm 1000x1000mm
Tranparency 55% 65% 70% 72% 75% 75% 80% 85%
Refresh Rate ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Weight 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡ 7.5kg/㎡
Viewing Angle 160° 160 ° 160 ° 160 ° 160 ° 160 ° 160 ° 160 °
Voltage 5V 5V 5V 5V 5V 5V 5V 5V
Average Power 240w/㎡ 240w/㎡ 240w/㎡ 240w/㎡ 240w/㎡ 200w/㎡ 120w/㎡ 120w/㎡
Maximum Power 800w/㎡ 800w/㎡ 800w/㎡ 800w/㎡ 800w/㎡ 800w/㎡ 800w/㎡ 800w/㎡
Brightness ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡ ≤6000cd/㎡
Operation Temperature -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃ -22℃-55℃
Drive mode Static Static Static Static Static Static Static Static
Life Time 100000 100000 100000 100000 100000 100000 100000 100000
Ip Class IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68

This series of products retains the ultra-high transparency and ultra-lightweight characteristics of the glass, through the control of the rich photoelectric display effect, to realize the text, pictures and video playback. It adopts dry PVB interlayer technology, with a transparency of 90%, and can be customized to any size according to the application scenario, making it easy to install.

At present, this series of products has been widely used in indoor and outdoor glass curtain walls, windows, lighting equipment and outdoor media, etc., and is also suitable for all kinds of outdoor glass curtain walls and sightseeing elevators.
